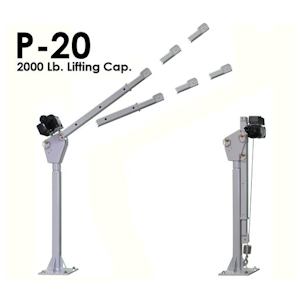

1 Ton Portable Crane

FOR VEHICLES & PLATFORM MOUNTING

- 12V-DC Powered, Circuit Breaker Protected

• 2000 lbs. Max. Lifting Capacity
• 6 Position Manually Adjustable Boom (Up to 88' of lifting height)
• 360° Manual Rotation; rotating upon sealed bearings
• Positive Rotation Lock; secures boom at 12 fixed points
• 12V-DC Powered, up/down, with Dual Internal Braking
• 25' x 7/32" Lifting Cable w/Hook
• 10" Remote Pendant Control Rotation Hand Brake
• Crane is pre-wired, factory tested and all hardware provided
• Detailed installation and operating instructions provided
• Durable Powder Coat Finish (Light Grey)
• Crane weight is 218 lbs (Shipping wt 235 lbs)
• 1-Year Warranty (excluding Lifting Cable)

Download

P20 1 Ton Portable Crane Spec Sheet P20 1 Ton Portable Crane Manual
