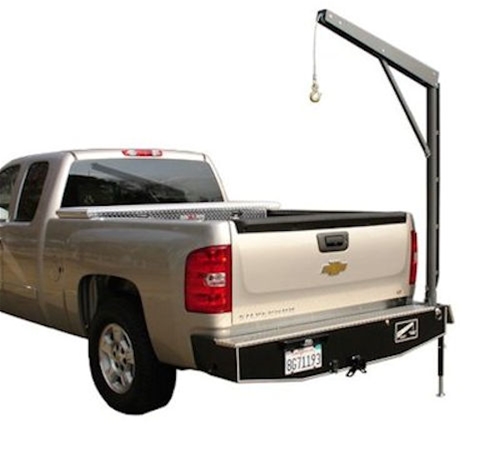

A Series Pickup Truck Bumper Crane

With the addition of an A-Series Bumper Crane, your pickup is transformed into a real work truck without losing any valuable bed space or existing function of your vehicle.

When the crane is in the stored position everyone will be amazed that you have anything more than a great looking heavy duty rear bumper.

For Mid & Full Size Pickup Trucks (1/2 - 1 Ton)

Standard FEATURES

• 12V-DC powered from the vehicle battery
• 10' handheld pendant control
• 360° continuous manual rotation
• Crane Folds Away into bumper
• Bumper is built to the vehicle width
• Built in Fold-Down Outrigger
• Galvanized aircraft quality cable, 25' x 3/16" with a single line breaking strength of 4200 lbs
• Durable powder coating; semi-gloss black
• All necessary wiring, brackets, fasteners and hardware for bolt on  mounting to truck frame
• Two lifting heights 77" & 85" from top of bumper*
• 45" fixed boom length
• Meets ANSI standards for mobile cranes
• The Crane is OSHA & ANSI compliant as a Man-Lift for Confined Space Activities when equipped with the optional WO-CSR Confined Space Rescue & Recovery System
• Class IV, 2" Receiver Hitch
