Formerly KargoMaster
EZ Lo-Down Van Ladder Racks are a drop-down ladder rack which work on all van roof heights and make it super easy to mount, raise (or lower) and secure your ladders. Choose from several ladder rack combinations depending on the height of your van. The easy and safe way to load and unload your ladders from your work van. Simply rotate the arm and experience the smooth and gentle lowering of your ladder.
- Holds extension or step ladders
- Adjustable clamps firmly secure ladder to rack.
- Rung grips are adjustable to secure extension ladders of all sizes.
- Rugged crossbows are low over van roof to reduce overall vehicle height and to facilitate loading and unloading.
- Easy to reach lockable clamp arm firmly secures ladder to rack on low roof racks.
- Easy to reach removeable handle firmly secures ladder to rack on higher roof racks.
- Curb side clamp mechanism included. Purchase driver side drop down or clamp & lock mechanism (sold separately ... see application guide).
- Wide mount feet clamp securely to rain gutter. Feet coated at bottom to protect rain gutter paint. (Only for GM vans)
- Ladder grips are adjustable to secure extension and step ladders 8’ or larger.
- Ladder racks are available for all current cargo vans. No drilling or cutting is required.
- Zinc epoxy primed for superior rust resistance. Chip resistant white powder coat.
- Quick and easy to assemble and install with mounting kit included with rack.
- Driver side load retainers are included.

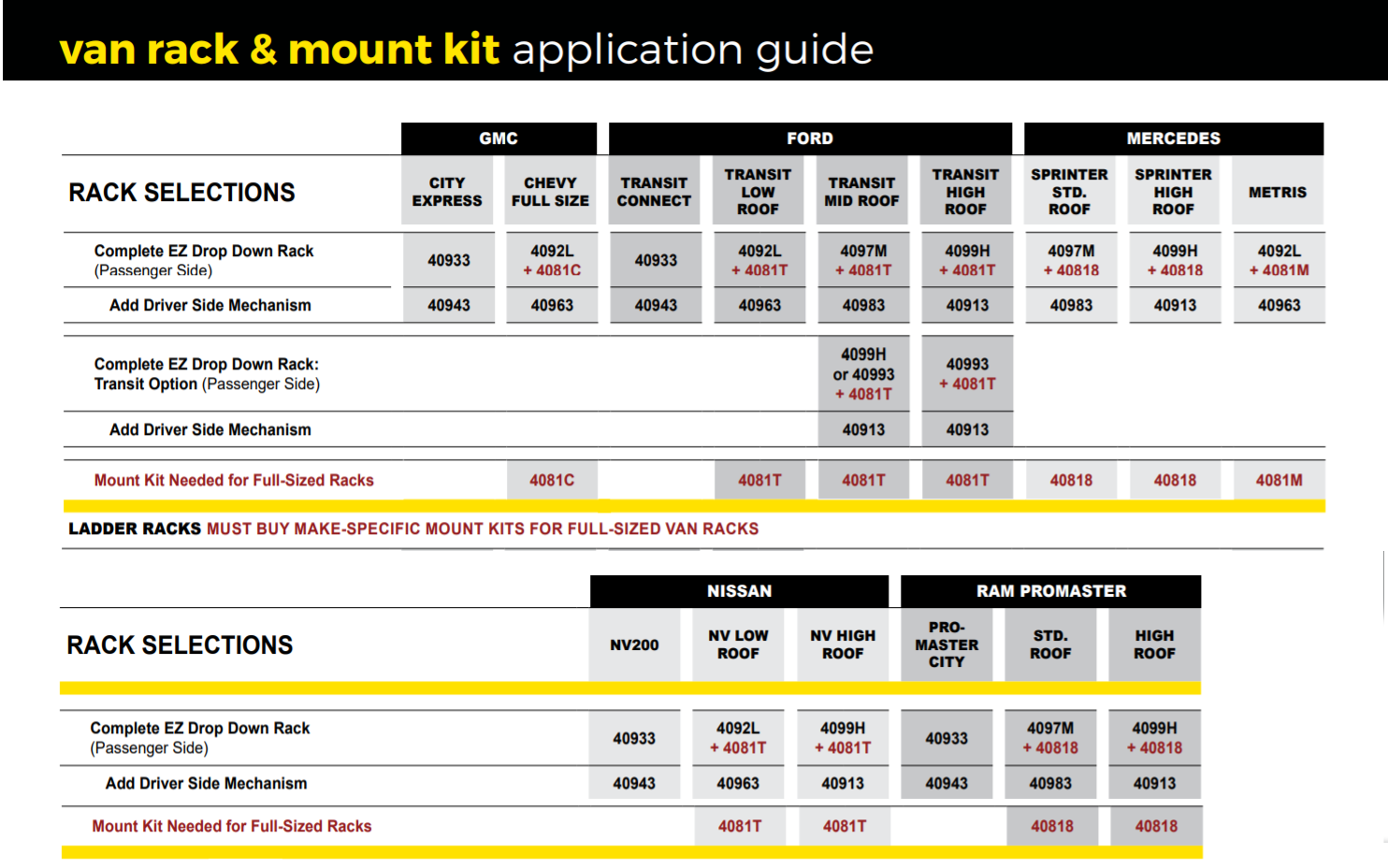

| VEHICLE | Basic Unit Passenger Side |
With Additional
EZ Drop Down on Driver's Side |
|
| Part # + Mounting Kit (if required) | Part # | ||
| GM/CHEVROLET | |||
| EXPRESS, SAVANA |
Kit 4GMS0D (Part #'s 4092L + 409CD) |
Kit 4GMSDD (Part #'s 4092L + 409CD + 40963) |
|
| CITY EXPRESS | 40933 | 40933 + 4081L | |
| FORD | |||
| TRANSIT LOW ROOF |
Kit 4TLS0D (Part # 4092L + 409TD) |
Kit 4TLSDD (Part #'s 4092L + 409TD + 40963) |
|
| TRANSIT MID/HIGH ROOF |
Kit 4TMS0D (Parts 4099H + 409TD) |
Kit 4TMSDD (Parts 4099H + 409TD + 40913) |
|
| TRANSIT CONNECT |
Kit 4TCS0D (Part # 40933) |
Kit 4TCSDD (Part # 40933 + 40943) |
|
|
|||
| SPRINTER STANDARD ROOF |
Kit 4SLS0D (Part # 4097M + 4081S) |
Kit 4SLSDD (Part # 4097M + 4081S + 40983) |
|
| SPRINTER HIGH ROOF |
Kit 4SHS0D (Part # 4099H + 4081S) |
Kit 4SHSDD (Part # 4099H + 4081S + 40913) |
|
| METRIS |
Kit 4MES0D (Part # 4092L + 4081M) |
Part 4MESDD (Part # 4092L + 4081M + 40963) |
|
|
|||
| NV LOW ROOF |
Kit 4NLS0D (Part # 4092L + 409ND) |
Kit 4NLSDD (Part # 4092L + 409ND + 40963) |
|
| NV HIGH ROOF |
Kit 4NHS0D (Part # 4099H + 409ND) |
Kit 4NHSDD (Part # (099H + 409ND + 40913) |
|
| NV200 |
Kit 4NCS0D (Pat # 40933) |
Kit 4NCSDD (Part # 40933 + 40943) |
|
|
|||
| PROMASTER STD. ROOF |
Kit 4PLS0D (Part # 4097M + 4081P) |
Kit 4PLSDD (Part # 4097M + 4081P + 40983) |
|
| PROMASTER HIGH ROOF |
Kit 4PHS0D (Part # 4099H + 4081P) |
Kit 4PHSDD (Part # 4099H + 40818 + 40913) |
|
| PROMASTER CITY |
Kit 4PCS0D (Part # 40933) |
Kit 4PCSDD (Part # 40933 + 40943) |
|
Installation Instructions | ||
| Ladder Rack | Mounting Kit | Driver's Side |
|
4092L | 409CD |
40963 |
|
40933 |
409TD |
4081L |
|
4099H |
40913 | |
|
4097M |
4081S |
40943 |
|
4081M |
40983 | |
| 4081P | ||

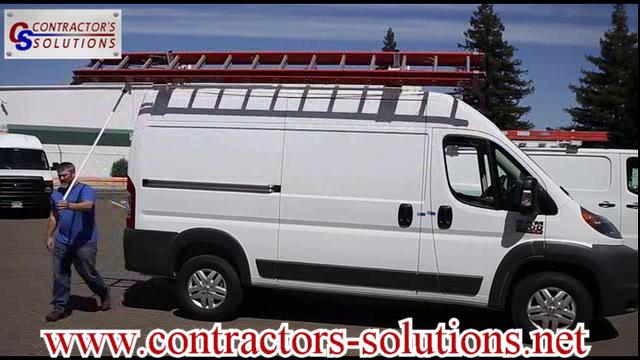

Dodge Ram ProMaster with Drop Down Ladder Rack
