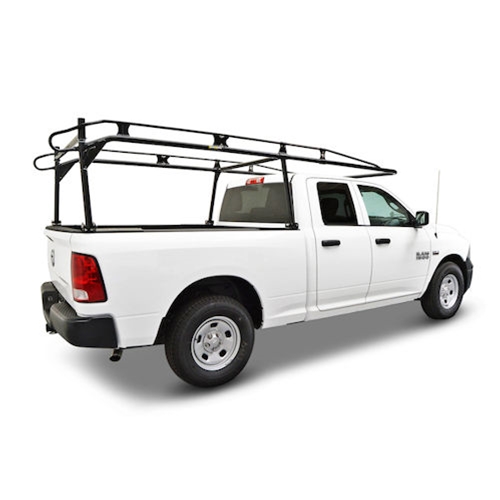

Holman / Kargo Master Pro III Rack for Mid-Sized Trucks with or without Cap
Strong Medium-duty Truck Rack for Mid-size Standard and Short Bed Trucks. Pro III truck racks are strong, light, and designed to be rust proof. Refer to our application guide for vehicle fit and matching components.
This truck rack is made using rugged 1-5/8" dia. round tubing with a wall thickness of .083" for strength and stability. The rack is primed with a zinc epoxy for superior corrosion protection!
NO-DRILLING REQUIRED!* Our racks INCLUDE a no-drill clamp-on option that will not damage your trucks bed.
*Some cutting may be required with a drop in bed liner.
This rack will fit all mid-size short bed and standard bed trucks with inside bed lengths between 58” and 84-1/4”.
Features
- Versatile Design - Front legs adjust
to fit different length beds.
- Zinc / aluminum flake coated
fasteners resist corrosion up to four times longer than yellow zinc
fasteners used by competing brands.
- NO-DRILLING REQUIRED! Our racks
INCLUDE a No-Drill Clamp-On options that will not damage your trucks bed.
- The Pro Wing wind deflector now
included as standard. Holman’s new patented scalloped wind deflector
design is proven to cut wind noise by more than half.
- Self-locking nuts stay tight.
- Rack is easily removed with four
bolts.
- Flexible tubular frame absorbs
impact stress that can damage your truck bed.
- Nationwide frame Warranty
Specs
- 1-5/8" dia. x .083” high
tensile strength tubing
- 1000 lbs. cargo capacity
- Zinc Epoxy undercoat
- High gloss black marine grade powder
coat
- Swaged tube joints
- Zinc / aluminum flake coated
hardware
- Nylon-insert self-locking nuts
- 1000-hour ASTM salt spray resistance

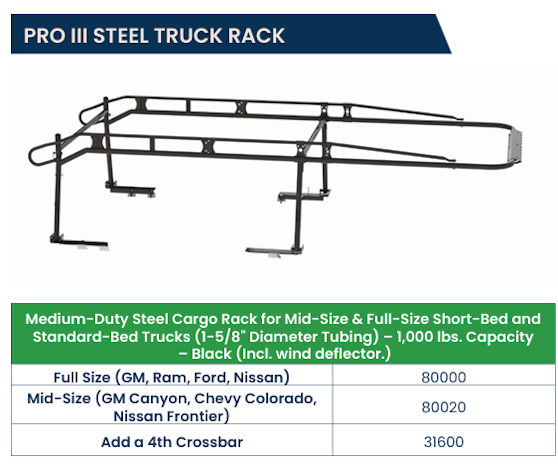

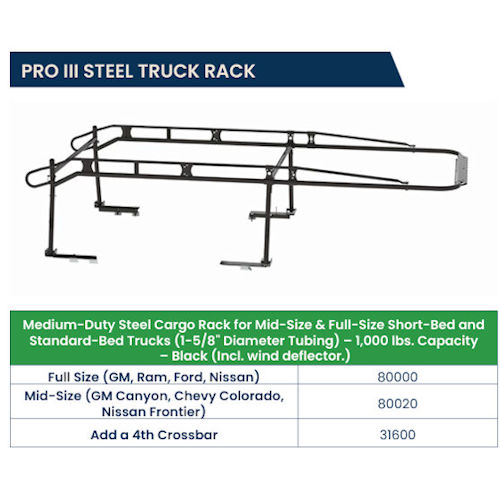

PART#: 80020 for Mid-Size Trucks Without a Cap
Installation Instructions
| Ford | Ranger | Super Crew |
| Ford | Ranger | Super Cab |
| Chevy/GMC | Colorado/Canyon | Crew Cab |
| Chevy/GMC | Colorado/Canyon | Extended Cab |
| Nissan | Frontier | |
| Toyota | Tacoma | 2005 - 2015 require bed rails #31270 (31270 rails are only compatible with 6ft beds). Does not fit 2016 & Up Toyota Tacoma. |

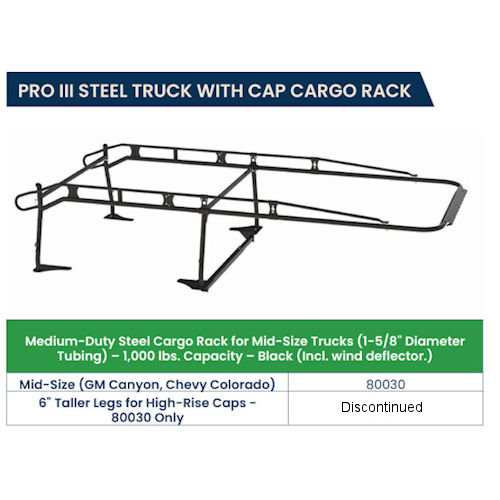

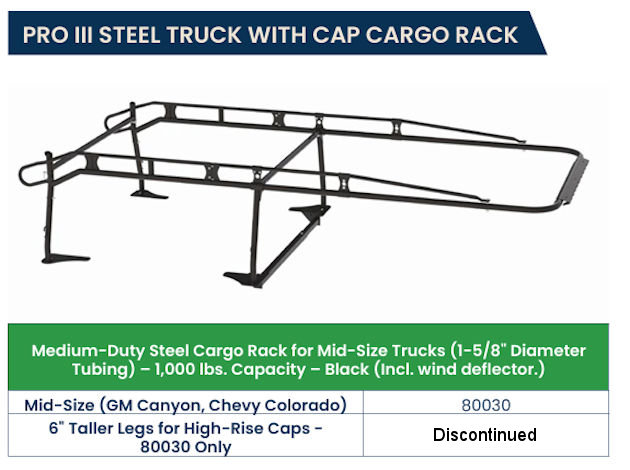

PART#: 80030 for Mid-Size Trucks WITH a Cap Installation Instructions
| Chevy Colorado | GMC Canyon |
| Pre-2005 Toyota Tacoma |
